Industrial Fan
El rango de tamaño del ventilador de nuestra empresa es de 200 mm a 2000 mm,
Cubre todos los ventiladores axiales con una potencia inferior a 120kw.
Características del producto: ángulo ajustable, material intercambiable, forma de hoja diversificada, personalización de tamaño no estándar, más adecuado para la producción en masa.
Ventas anuales de 30 millones de yuanes, producción anual de más de 100.000 fans
Garantía de calidad, prueba de materiales
Las cuchillas están hechas de nailon de fibra de vidrio importado. Llevamos a cabo pruebas de comparación de ranuras en los materiales, y cada producto que fabricamos tiene el mejor rendimiento.
series

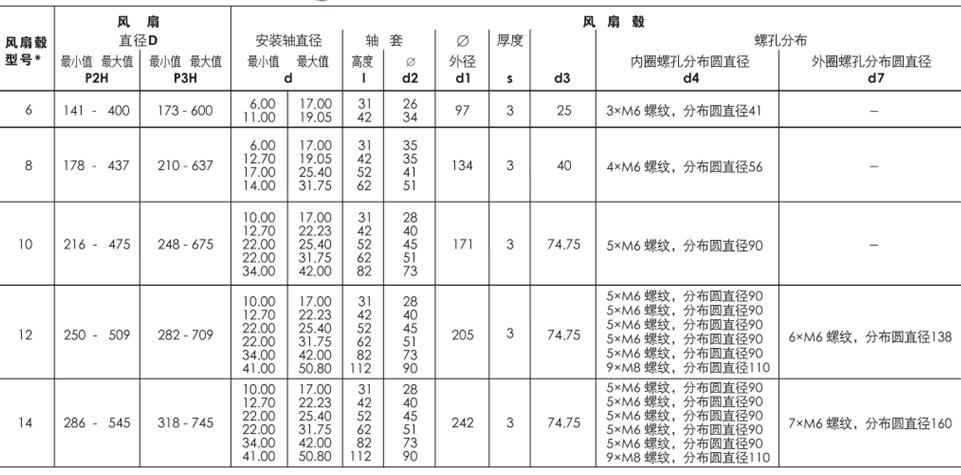

Fixed angle series
The diameter of this series of fans is from 145mm to 745mm, and the blade twist angle can be adjusted within 20° to 50° to meet the different application requirements of customers. The so-called fixed angle means that the angle of the fan blades has been set before assembly, and the angle cannot be changed during installation. The advantages of this type of fan are excellent balance performance, fast assembly speed, and suitable for mass production.
Products used in air compressors, fans
Hydraulic cooling, diesel engine, spray and other industries
Adjustable Angle Series
This series of fans has a very wide range of applications, with large loads and a wide variety of blade forms. The blade root installation method is common in the industry. The angle of the fan blade is fixed within the specified angle range through the positioning pin.
High power diesel fan
The maximum diameter of the fan is 2010mm, which has a good performance in the generator set industry, air conditioning and other industries
The company has been committed to reducing energy consumption and increasing air volume, which has far-reaching influence in the market.
This series of fans has a large load and is often used in generator sets, fans, air conditioners and other equipment
Agriculture, forestry and plant protection, dust suppression and fog cannons
The operating environment of the high-pressure fan requires high fan strength and high speed. The axial flow fan produced by our company can withstand more than 3000 rpm at the maximum speed.
fog cannon
Range: 20-100 meters
Power: 2kw-37kw
Material: aluminum alloy - glass fiber nylon
Impeller size: 300-1200mm
plant protection
Pesticide range: 4-7 meters
Power 3kw-15kw
Material: glass fiber nylon
Blade shape-material
According to different working conditions, four kinds of fans (wing, incremental arc, sickle, reversible) cover most ventilation and heat dissipation situations.
| material | Element | color | temperature range | features |
PAG | Glass fiber reinforced nylon | cream | -40℃~110℃ | Normal environment, corrosion resistance |
PACAS | carbon fiber nylon | black | -35℃~110℃ | High strength, explosion-proof |
AL | Die-cast aluminum alloy | gray | -40~150℃ | High temperature resistance, explosion-proof |
| Sickle shape: low noise, high pressure | Airfoil shape: high efficiency, uniform air volume |
  |  |
| Incremental arc: large air volume, high pressure | Reversible shape: the same air volume when reversed |
|
|

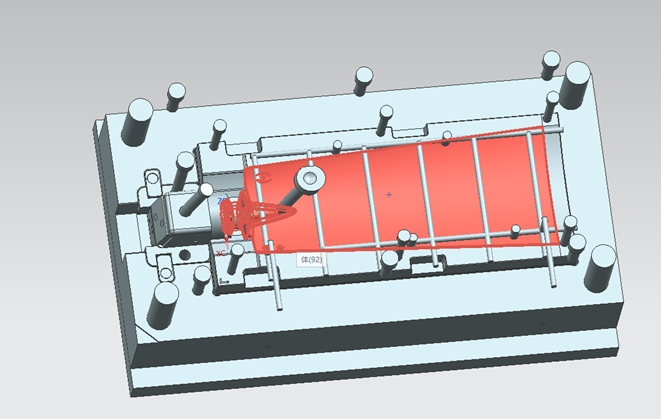

Mold development and production
Mold design and production (outsourcing) choose reasonable tonnage and pressure
Product Verification
Validation of key parameters
Overspeed and overload damage test - repeated confirmation with customers
Confirm the limit data as the application basis, and reserve more than 30% of the safety margin. If necessary, strengthen and improve the weak points.
Mold repair improvement, maintenance, placement
Supplier is responsible for maintenance and records
Customer test for fan performance
Some representative harsh working conditions: reliability and durability are the two most important parameters for cooling assemblies of construction machinery such as mining trucks. The top grid provides powerful and reliable fans to ensure sufficient cooling reserves even for dirty radiator assemblies.
Installation of the fan
fan drawing
